Revere load cells & mounts

The load cells are used in many different weighing solutions such as: Process weighing, multi-head packaging machines, hopper weighing, belt scales, platform and silo weighing and other industrial scales. The range of load cells includes a range of medium- and high-capacity double-ended shear beam, ring torsion and compression load cells, as well as single-point, single-ended beam and universal load cells.
The Revere load cells are used in the food industry, pharmaceutical and chemical industry and many others. For hazardous environments many of the load cells are available in ATEX / FM / EEx approved versions.

Please see Revere Load Cell flyer for a full overview of the products.

Revere Load cells overview

Image of Revere load cells & mounts

Alternative image of Revere load cells & mounts

Alternative image of Revere load cells & mounts

Alternative image of Revere load cells & mounts

Alternative image of Revere load cells & mounts

Discover our subproducts

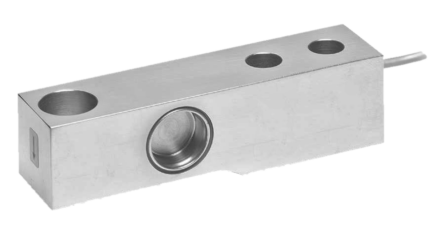

ACB

ACB load cell is a high accuracy stainless steel shear beam load cell suitable for small & medium platform scales, hybrid scales, pallet weighers and process weighing. The fully welded construction and the cable entry ensure that this product can be used successfully in harsh environments found in the food, chemical, and allied process industries. An integral mounting step removes the need for spacer plates and ensures optimum “bolt down” conditions. For hazardous environments is it available in an Atex approved version. Certified to OIML R60, 6000d. Hermetically sealed, IP66 and IP68
Read more

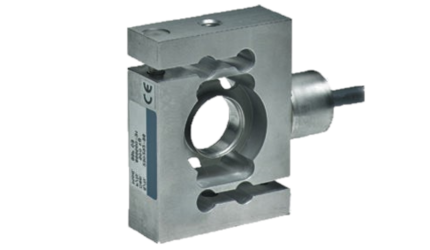

BSP

The load cell model BSP is a stainless steel S – type load cell designed for tension and compression. The load cell is well suited for hybrid scales, overhead track scales, belt scales and process weighing applications. The fully welded constructions and water block cable entry ensure that the BSP is suitable in a harsh environment found in the food, chemical and allied process industries. For hazardous environments it is available in an ATEX or FM approved version. Certified to OIML R-60, 3000d. Hermetically sealed, IP66 and IP68. The load cell is available in the capacities 50 -5000 kg and 100 -10 k lbs.
Read more

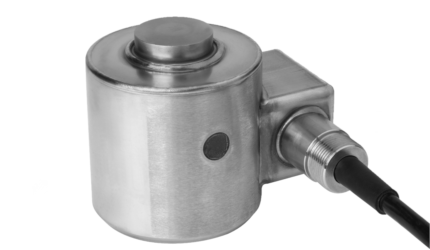

CSP

The load cell model CSP is a stainless steel, low profile multi-column, compression load cell. The fully welded construction, advanced cable entry and built-in surge protection tubes ensure that this product can be used successfully in harsh environments. This heavy-duty load cell is suited for hopper, tank, silo weighing and many other large-scale industrial applications, including weighbridges for truck weighing, it is available in the capacities 10 – 100 tons. It is sealed to IP68. Certified to OIML R-60, 4000d and NTEP class IIIL 10000 divisions. ATEX and FM certified versions are available for use in explosive atmospheres.
Read more

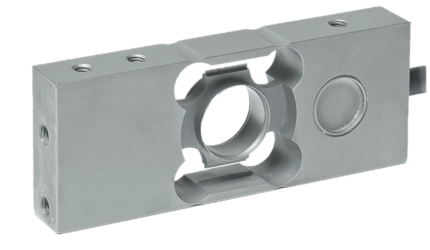

HPS

The HPS stainless steel single-point load cell is fully welded. The load cell is suitable for process weighing applications, low capacity platform scales, multi-head packaging machines, check weighers, loss-in-weight feeders belt scales and other applications. The unique construction ensures that the load cell is well suited for harsh environments found in the food, chemical and allied industries. It is available in an ATEX and FM approved version for use in hazardous areas. Certified to OIML R-60, 3000d. ATEX and FM certified versions are available for use in explosive atmospheres. Hermetically sealed, IP66 and IP68.
Read more

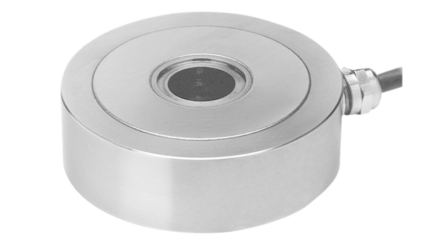

RLC

The load cell model RLC is a stainless steel, low profile, high performance ring torsion load cell. The RLC is available in the capacities 250 kg to 60 tons. The fully welded construction and glass-to-metal cable entry ensures that this product can be used successfully in harsh environments found in the food-, chemical- and allied process industries. The RLC is well suited for high capacity weighing applications, including, tanks, silos, as well as hoppers and process weighing. Hermetically sealed, IP66 IP68 and IP69K. Certified to OIML R-60 and NTEP. The load cell is available in an ATEX approved version for use in hazardous environments.
Read more

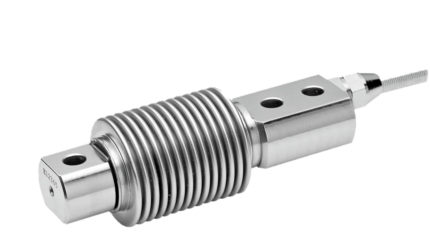

SHBxR

The load cell model SHBxR is a stainless steel, bending beam load cell. The load cell is suitable for low profile process weighing, platform scales, packing machines, belt scales and hybrid scales. It is available in the capacities 5 - 500 kg. Fully welded construction and water block cable-entry ensure that the load cell SHBxR can be used successfully in harsh environments found in the food, chemical and allied industries. Hermetically sealed IP66 and IP68. Certified to OIML R-60, 4000d and NTEP class IIIL, 10000d. The load cell is available in ATEX and FM approved versions for use in hazardous areas.
Read more
5123

The load cell model 5123 is a low-profile single-ended shear beam load cell. The load cell is available in the capacities 5 - 5000kg and 1k - 10k lbs in nickel-plated ally steel. 5123 is well suited for process weighing applications, bin and hopper scales, platforms scales, overhead track scales and tank weighing. The load cell is approved to OIML R60, 3000 division and NTEP III 3000 division and hermetically sealed to IP67. Easy installation due to the use of a partially threaded hole to accept levelling feet or load buttons. The Revere 5123 load cell is available in a FM approved version for use in potentially hazardous areas.
Read more

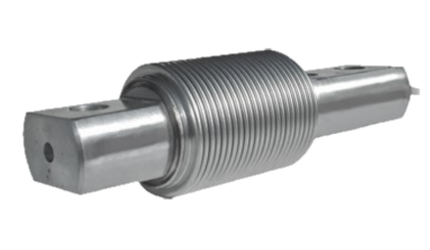

9102

The load cell model 9102 is a stainless steel, bending beam. The 9102 is available in the capacities 200-2500 lbs. The load cell is suitable for small and medium platform scales, overhead track scales and process weighing. Fully welded construction and water block cable-entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied industries. Hermetically sealed IP66 and IP68. Certified to OIML R-60, 5000d and NTEP class III, 5000d. The load cell is available in ATEX and FM approved versions for use in potentially hazardous areas.
Read more

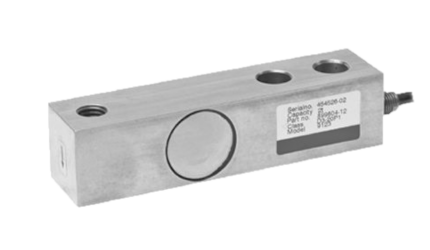

9123

The load cell model 9123 is a stainless steel, low profile shear beam load cell ideally suited for hopper scales, process weighing applications, small and medium platforms scales and overhead track scales. The load cell is available in the capacities 5 – 5000 kg and 1k - 20k lbs. Approved to OIML R60, 4000 division and NTEP III 5000 division. Sealed to IP67 level. The load cells is available in a FM approved version for use in potentially hazardous areas.
Read more

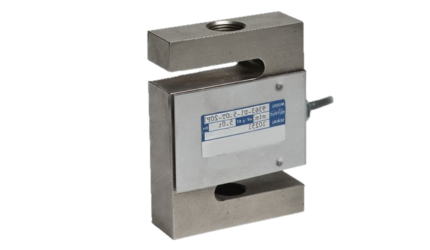

9363

The load cell model 9363 is a stainless steel S – type load cell which can be used in either tension or compression applications. The 9363 is available in the capacities 50 – 10.000 kg and 50 -20.000 lbs. The load cell is suitable for a wide range of hybrid scales, overhead track scales, belt scales and process weighing applications. Certified to OIML R-60, 3000d, NTEP class IIIL, 10000d. The 9663 is available in a FM approved version for use in hazardous areas.
Read more

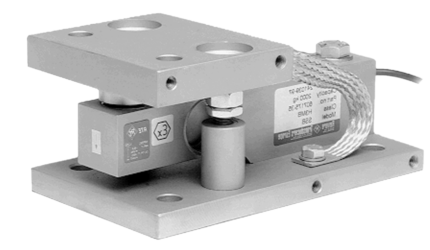

ACB Mount

The ACB stainless steel self-aligning silo mount, combined with the ACB load cell, provides weighing assemblies well suited for process control, batch weighing, silo, hopper and belt scale applications. The ACB mount permits controlled movement in all directions, due to the built-in horizontal movement control and lift-off protection. The design of the ACB mount allows the load cell to be fitted after installation of the mount.
Read more

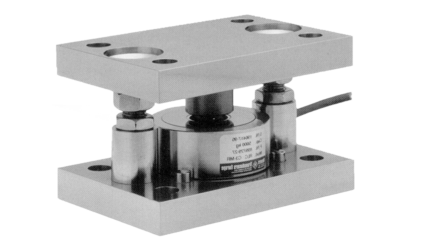

RLC Mount

The RLC Self-Aligning Silo Mount in stainless steel tolerates controlled movement in all directions. The silo or hopper is held captive, eliminating the need, unless major load movement is anticipated, for additional check rods. The design allows the load cell to be placed after installation of the mount. The RLC silo mount and load cell provides weighing assemblies suitable for process control, batch weighing, silo/hoppers and belt scale applications.
Read more

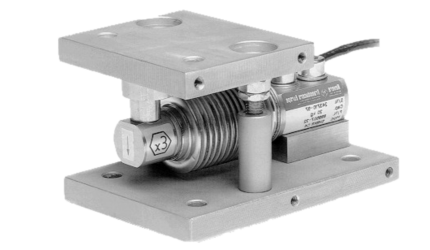

SHBxR Mount

The SHBxR stainless steel silo mount permits controlled horizontal movement in all directions. The design allows the SHBxR load cell to be placed after installation of the mount. The critical load introduction area is mechanically protected. The mount combined with the SHBxR load cell, provides weighing assemblies suitable for process control, batch weighing, hopper and belt scale applications. Hardened components are used at all load bearing surfaces. The stainless steel construction guarantees long-term reliability.
Read more

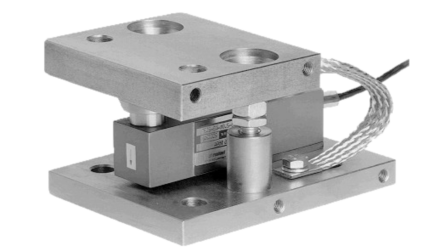

5123 Mount

The 9123/5123 self-aligning silo mount, combined with the 9123/5123 load cell family, provides weighing assemblies suitable for process control, batch weighing, silo/hopper and belt scale applications. The 9123/5123 silo mount is based on a rocker pin design, combining excellent load introduction to the transducer with an overall low profile. Hardened components are used at all load bearing surfaces. The stainless steel construction guarantees long-term reliability, even in the harshest environments.
Read more

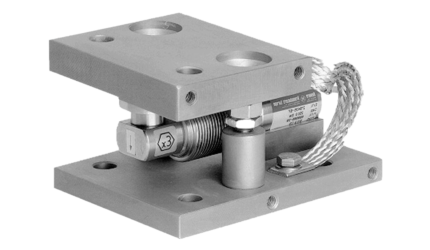

9102 Mount

The 9102 self-aligning silo mount, combined with the 9102 load cell, provides weighing assemblies suitable for process control, batch weighing, silo, hopper and belt scale applications. The 9102 silo mount is based on a rocker pin design, combining excellent load introduction to the load cell with an overall low profile. The mount permits controlled movement in all directions, due to the built-in horizontal movement control and lift-off protection. Hardened components are used at all load bearing surfaces.
Read more
9123 Mount

The 9123/5123 self-aligning silo mount, combined with the 9123/5123 load cell family, provides weighing assemblies suitable for process control, batch weighing, silo/hopper and belt scale applications. The 9123/5123 silo mount is based on a rocker pin design, combining excellent load introduction to the transducer with an overall low profile. Hardened components are used at all load bearing surfaces. The stainless steel construction guarantees long-term reliability, even in the harshest environments.
Read more
