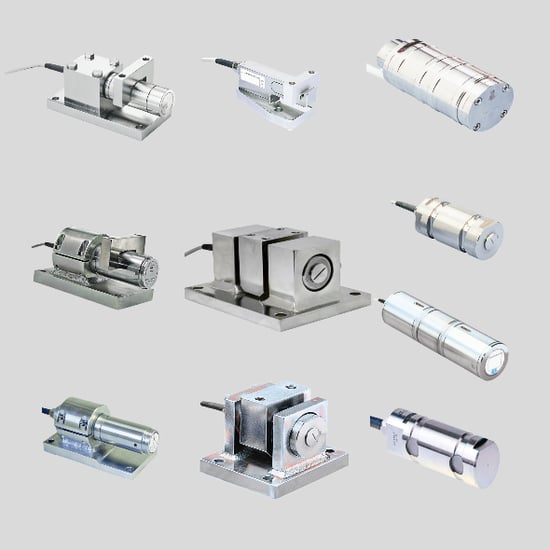

The KIS load cell are ideally used in process weighing solutions such as: Big Bag Filling, Reactors, Silo, and tank weighing, due to the load cell design, which minimizes the effects of vibrations, side and twisting forces and thermal expansion, which provides a reliable process control.
The load cells are used in many different industries such as: Food, Pharmaceutical, Chemical, Metal and Offshore industry. The KIS load cell design offer the best combinations of robustness, reliability and accuracy to address the specific challenges in many differ industries and applications.
.png?width=170&name=BLH_Nobel_Offshore-Weighing_Tekemas%20(1).png)
The KIS-1 load cell is available in the capacities 50, 100, 200, 300 & 500 kN. KIS-1 is easy to install and very accurate, even when exposed to dynamic process forces and severe environmental conditions. The KIS-1 load cells are available in ATEX, IECEx, FM, CSA certified versions for use in explosive atmospheres.

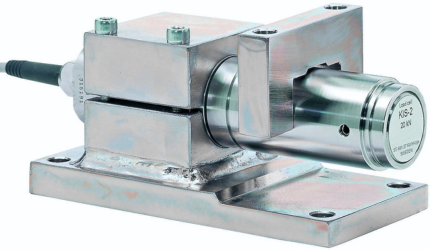

The KIS-2 load cell is available in the capacities: 1, 2, 5, 10, 20, 30 & 50 kN. KIS-2 is easy to install and very precise, also when subjected to dynamic process forces and severe environmental conditions. The KIS-2 load cells are available in ATEX, IECEx, FM, CSA certified versions for use in explosive atmospheres.
The KIS-3 load cell is available in the capacities: 1, 2, 5, 10, & 20 kN. KIS-3 is very accurate and resistant to high lateral forces. Easy to install and non-sensitive to thermal expansions, vibrations and disturbant side force. The KIS-3 load cells are available in ATEX, IECEx, FM, CSA certified version for use in explosive areas.
The KIS-8 load cell is easy to install and very accurate. It is available in the capacities: 1, 2, 5, 10, 20, 30, 50, 100 & 200 kN. It is non sensitive to thermal expansions, vibrations and disturbance side force. KIS-8 is available in a version for temperatures from -40 to +100°C and in an ATEX, IECEx, FM, CSA certified version.
The KIS-9 load cell is available in the capacities: 5, 10, 20, 50 & 100 kN. Easy to install and highly accurate, even when subjected to dynamic process forces and severe environmental conditions. It is non sensitive to thermal expansions, vibrations and disturbant side force. The KIS-9 is available in ATEX & IECEx certified versions for use in explosive atmospheres.
The KIS-11 load cell is available in the capacities: 50, 100 & 125 kN. Easy to install and very accurate, also when subjected to dynamic process forces and severe environmental conditions It is non sensitive to thermal expansions, vibrations and disturbant side force. The KIS-11 load cells are available in an ATEX, IECEx certified version for use in explosive areas.
The KIM-1 load cell, capacity 200 kN, is easy to install and is very precise, even when subjected to lateral forces and harsh environmental conditions. Due to the double cantilever design it can have a floating load point and is not affected by side forces up to 100%. The KIM-1 are available in ATEX and IECEx certified versions for use in explosive areas.
Heavy-duty weigh module for high capacity 250, 500, 800 & 1000 kN weighing. Easy to install. The design allows for thermal expansion of the weigh bridge and is unsensitive to vibrations or side force. No need for stay rods etc. The KIMD-1 can be supplied with customized mechanics for easy installation. Available in an ATEX/IECEx certified versions.
The KIMD-6 has a rugged design for harsh environment. Available in the capacities: 10, 20, 50, 100, 200 kN. It is suited for force measurement, weighing and overload protection. The sensing element consists of three sections, the two outer sections constitute supports and the middle section is the load sensing part. KIMD-6 load cell is available in ATEX/IECEx certified.
The KISD-6 load cell is available in the capacities: 50, 100, 200, 400, 1000 kN. Due to the double ended, double cantilever design it can have a floating load point and is not affected by side forces up to 100%. It is non sensitive to thermal expansions, vibrations or disturbing side force. The KISD-6 is available in an ATEX/IECEx certified version.
The load cell in the capacity 1000 & 2000 kN is a double ended shear beam. The cylindric shape makes it easy to replace an axis. Designed for over load protection in harsh environment. Suitable for installing in module for high capacity level monitoring and weighing. Can be adapted for other dimensions & capacities. KOSD is available in an ATEX/IECEx certified version.
The load pin is available in the capacities 10, 20, 50, 100, 200 & 500 kN. It has a rugged design for harsh environment. It is suitable for force measurement and overload protection. KOSD-40 can be delivered in a module for load and level monitoring in storage tanks, then called KOM-1. The KOSD-40 is available in an ATEX/IECEx certified version.

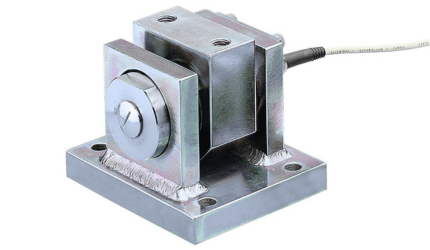

The KOM-1 weigh module is available in the capacities: 10, 20, 50, 100, 200 & 500 kN. The sensing element consists of three sections: The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section which is the load sensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.
The weigh module in the capacities 20, 100, 200 & 500 kN, combines compact design with high accuracy. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section load sensing part, is a yoke to which the leg of the tank is secured. The load pin is efficiently locked so that it cannot twist in the built-in block.
