Big Bag Filling Systems

Tekemas offers a wide range of solutions for filling big bags. The modular components as well as surface finishing/treatments and mild or stainless steel construction, provide variety of options which are tailored to suit your process requirements.

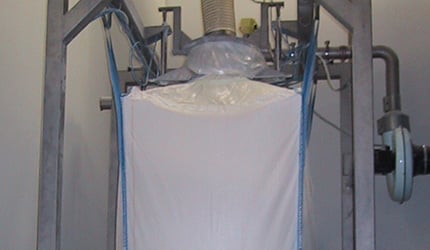

The big bag fillers have a standard double filling tube with inflatable bellows for dust-tight fixation. The outer tube on the filling head is fitted with a nozzle for evacuating air during filling.

The various models are operator-friendly and ergonomically correct, operated either from floor level (for big bags with a height up to 2m) or from an operator platform, if required.

  • Pneumatically driven hooks and filling head for easy attachment of straps and filling sleeve
  • Filling head with inflatable bag seal and dust extraction facilities
  • Automatic inflation of FIBC
  • Can be fitted with load cells
  • Forklift truck big-bag removal, or via chain or roller tracks
  • Easy height adjustment for different bags
  • Various modules can be put together to meet specific needs
  • Filling capacity up to 15 bags/hour (for direct weighing)
  • Filling capacity up to 30 bags/hour (pre-weighed in weighing hopper)
  • Up to 2000 kg FIBC filling capacity
  • Can be fitted with weighing system
